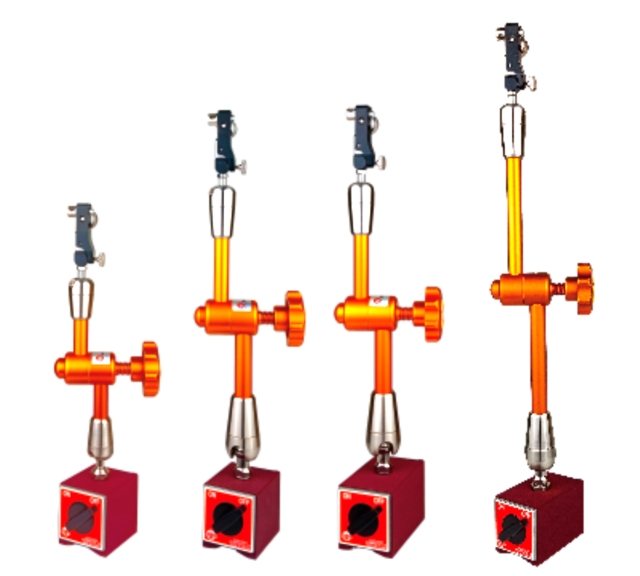

UNIVERSAL ARM MAGNETIC STAND

Description
* Made by aluminum alloy, light and easy to operate.
* Principle of hydraulic, stable and accurate.
* With new type micro-adjustment device, it's more precise and stable.

Specification
The ECE Series includes a diverse range of magnetic precision tools, primarily magnetic bases and magnetic stands. These tools are designed for use in machining, measurement, and tool alignment applications, providing stability, precision, and ease of operation. Below is an explanation of the products along with their specifications:

ECE-302BA Series
Models: ECE-302BA, ECE-302BV
Holding Power: 80 kgf
Base Dimensions: 60 × 50 × 55 mm
Weight: 1.6–1.7 kg
Applications: Standard and adjustable magnetic bases ideal for flexible clamping solutions on metalworking machines.
Features: Compact, durable, and supports micro-adjustments for precision.
ECE-304
Type: Magnetic working lamp base
Holding Power: 80 kgf
Dimensions: 60 × 50 × 55 mm
Power Supply: AC110/220V
Weight: 1.67 kg
Applications: Equipped with a lamp for illumination, suitable for metalworking environments requiring focused lighting.
ECE-312
Type: Wheel dresser magnetic base
Holding Power: 80 kgf
Base Dimensions: 60 × 50 × 55 mm
Weight: 1.1 kg
Applications: Designed for grinding operations, allowing precise alignment and support of grinding wheels.
ECE-303N2/303N3
Type: Cooling hose magnetic bases
Holding Power: 80 kgf
Hose Length: 365 mm
Base Dimensions: 60 × 50 × 55 mm
Weight: 1.6–1.62 kg
Applications: Facilitates cooling during machining, ensuring material stability and precision.
ECE-01A to ECE-02B Series
Description: High-precision and mini-type magnetic stands with advanced micro-adjustment mechanisms.
Specifications:
Holding Power: 30–100 kgf
Base Dimensions: 60 × 50 × 55 mm
Weight: 0.8–2.3 kg
Applications: Perfect for precise measurement and alignment tasks in machining and inspection.
ECE-330A/330AL
Type: Universal arm magnetic stand
Specifications:
Holding Power: 100 kgf
Arm Length: 345–426 mm
Base Dimensions: 80 × 50 × 55 mm
Weight: 1.9–2.2 kg
Applications: Versatile for general clamping and measurement purposes with a focus on durability.
These magnetic tools are essential for machining operations that demand precision, stability, and versatility. They are widely used in industrial settings for measuring, clamping, and supporting workpieces, thereby ensuring efficiency and accuracy in production processes. If you need more details or specific recommendations, let me know!
