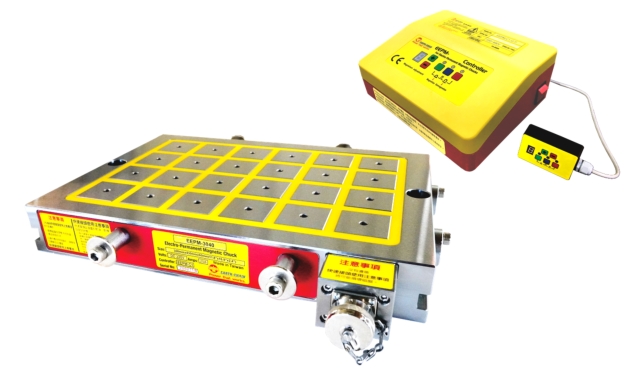

Electro-Permanent Magnetic Chuck

Suitable for medium & small work piece. (Can do 5 sides machining)
1. Super power magnetic force 1000kgf/100cm2. (4 Poles)
2. 1~06 seconds control for power ON & OFF. No electric power supply required to keep the magnetic chuck ON. Safety in case of power failure.
3. No power supply to keep the magnetic chuck ON, it could be used for long time and never get temperatures to affect the accuracy of work pieces.
4. Can do 5 sides machining, un-obstructed movement of cutters during machining. One cycle to finish a work piece helps in achieving best machining accuracy and increases efficiency a lot.
5. Easy and convenient to clamp a work piece, shortens clamping time.

Specification
EEPM-B Series Overview
The EEPM-B Series Electro-Permanent Magnetic Chuck is designed for CNC Vertical Machining Centers and supports 5-side machining. It includes standard accessories like pressure plates and T-caps, making it highly versatile for a variety of machining tasks.

Product Models and Specifications
1. EEPM-2540B
Dimensions (W×L×H): 240 × 430 × 30 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 18
Total Holding Power: 5600 kgf
Weight: 50 kg
Voltage: 220V
Current: 18A
Controller: C1
2. EEPM-2560B
Dimensions (W×L×H): 240 × 600 × 30 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 24
Total Holding Power: 7500 kgf
Weight: 63 kg
Voltage: 220V
Current: 18A
Controller: C1
3. EEPM-2590B
Dimensions (W×L×H): 240 × 910 × 30 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 36
Total Holding Power: 11200 kgf
Weight: 98 kg
Voltage: 220V
Current: 18A
Controller: C2
4. EEPM-3030B
Dimensions (W×L×H): 310 × 310 × 30 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 16
Total Holding Power: 5000 kgf
Weight: 41 kg
Voltage: 220V
Current: 25A
Controller: C2
5. EEPM-3060B
Dimensions (W×L×H): 310 × 600 × 30 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 32
Total Holding Power: 11200 kgf
Weight: 84 kg
Voltage: 220V
Current: 25A
Controller: C2
6. EEPM-3090B
Dimensions (W×L×H): 310 × 910 × 30 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 48
Total Holding Power: 17500 kgf
Weight: 138 kg
Voltage: 220V
Current: 25A
Controller: C2
7. EEPM-40100B
Dimensions (W×L×H): 420 × 1000 × 30 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 64
Total Holding Power: 24800 kgf
Weight: 165 kg
Voltage: 220V/380V
Current: 32A
Controller: C4
8. EEPM-50100B
Dimensions (W×L×H): 510 × 1000 × 30 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 80
Total Holding Power: 31000 kgf
Weight: 215 kg
Voltage: 220V/380V
Current: 32A
Controller: C4
9. EEPM-60100B
Dimensions (W×L×H): 600 × 1000 × 30 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 96
Total Holding Power: 37300 kgf
Weight: 240 kg
Voltage: 220V/380V
Current: 32A
Controller: C4

Key Features
High Clamping Power: The EEPM-B series delivers strong magnetic holding for a wide range of workpiece sizes.
Energy-Efficient Operation: Requires power only for magnetization and demagnetization.
Versatility: Ideal for CNC vertical machining centers and compatible with 5-side machining operations.
Accessories: Includes standard pressure plates for easy setup
