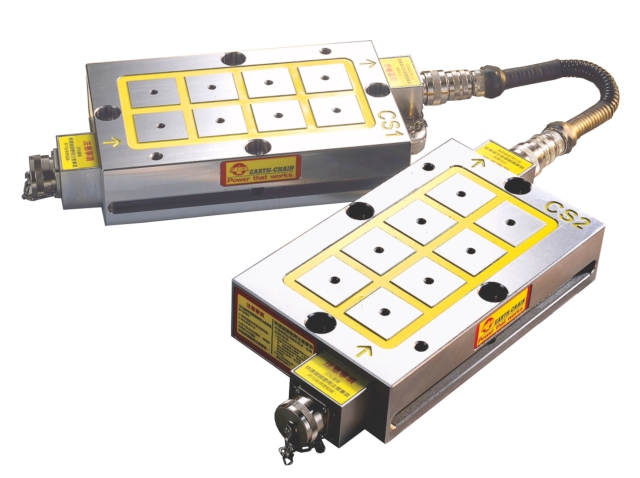

ELECTRO-PERMANENT MAGNETIC CHUCK-CONNECTION TYPE

1.Super power magnetic force 1250 kgf/100 cm² (4 poles), can meet various machining process.
2.Structure of Electro-Permanent Magnetic Chuck, no electric power supply required to keep the chuck On, it could be used for long time and never get temperatures to affect the accuracy of workpiece.
3.Using innovation series and parallel connection modular system, EEPM-C provides a more economic solution to hold various size workpiece. Flexible units could be deployed with various quantities, locations, and distance to each other depending on customers' various workpiece shapes. Save time and cost during machining and increase the accuracy that makes the goods have higher quality and value.
4.According to the size of the workpiece [point] hold the workpiece, changing the magnetic fixture [surface] clamp the workpiece, 100% use of the chuck in an all-round way. Can reduce equipment costs and increase more profits.
5.Without any obstructed movement of cutters during machining. Can do 5-sides machining, drilling, tapping, grooving and forming can be done all in one cycle. This greatly enhances work efficiency, and reduces repeated positioning tolerances to achieve best machining accuracy.

Specification
EEPM-C Series Overview
The EEPM-C Series Electro-Permanent Magnetic Chuck is a connection-type magnetic chuck suitable for large vertical lathes, double-column machining centers, and CNC machining centers. Designed for heavy-duty applications, this series ensures secure and stable clamping of large workpieces while maintaining high precision.

Models in the EEPM-C Series
EEPM-2030C

Voltage: DC 220V / AC 220V~480V
Dimensions: 190 × 446 × 310 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 8
Holding Power: 2500 kgf
Weight: 33.5 kg
Description: A versatile magnetic chuck suitable for mid-sized workpieces and applications requiring high clamping force.
EEPM-2525C

Voltage: DC 220V / AC 220V~480V
Dimensions: 250 × 386 × 220 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 9
Holding Power: 2800 kgf
Weight: 35 kg
Description: Ideal for small to medium workpieces, providing stable clamping for various machining needs.
EEPM-2530C

Voltage: DC 380V440V / AC 220V480V
Dimensions: 250 × 446 × 310 mm
Pole Pitch: 50 × 50 mm
Number of Poles: 12
Holding Power: 3750 kgf
Weight: 40 kg
Description: Optimized for larger workpieces, offering robust clamping power for heavy-duty machining operations.
Features
Strong Holding Power: Each model provides robust clamping force, ensuring stability during machining.
Energy Efficiency: Requires power only during magnetization and demagnetization, reducing energy consumption.
Modular Design: Compatible with multiple configurations for handling larger workpieces.
Durable Construction: Built for demanding machining environments, ensuring long-term reliability.
