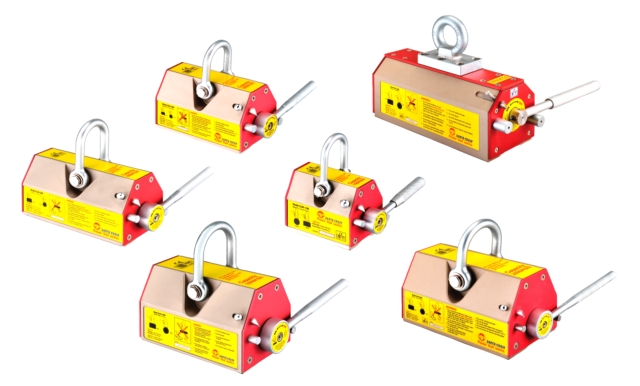

Permanent Lifting Magnet

Suitable for move plate steel, block steel and round steel, such as machine parts, press molds, plastic molds and iron material.....etc.
1. Made by “Rare Earth” magnet with technology of improvement.
2. All new models with “light weight” “less dimension” and “lower price”.
3. Made by permanent magnet, require no power supply, thus eliminating hazards due to failure wiring system as electric type.
4. It features powerful magnetic force, with 3.5 times safety coefficient makes more safety in use.

Product Models and Specifications
1. ELM-100
Capacity: 100 kg
Weight: 2.5 kg
Dimensions:
Length (A): 107 mm
Width (B): 84 mm
Height (C): 129 mm
Pole Height (H): 30 mm
Minimum Thickness for Use: 15 mm
Safety Factor: 3.5 times
Description: A compact and lightweight model, ideal for lifting small steel plates or machine parts, ensuring secure and easy handling.

2. ELM-300
Capacity: 300 kg
Weight: 8.6 kg
Dimensions:
Length (A): 180 mm
Width (B): 155 mm
Height (C): 157 mm
Pole Height (H): 41 mm
Minimum Thickness for Use: 25 mm
Safety Factor: 3.5 times
Description: Suitable for medium-sized materials, providing reliable clamping for press molds and iron components.

3. ELM-600
Capacity: 600 kg
Weight: 21 kg
Dimensions:
Length (A): 255 mm
Width (B): 224 mm
Height (C): 213 mm
Pole Height (H): 52 mm
Minimum Thickness for Use: 30 mm
Safety Factor: 3.5 times
Description: Designed for moderate-sized loads, delivering powerful magnetic force for various industrial applications.

4. ELM-1000
Capacity: 1000 kg
Weight: 46 kg
Dimensions:
Length (A): 294 mm
Width (B): 259 mm
Height (C): 286 mm
Pole Height (H): 87 mm
Minimum Thickness for Use: 40 mm
Safety Factor: 3.5 times
Description: A robust option for lifting larger steel blocks or plates, ensuring high performance in heavy-duty environments.

5. ELM-2000
Capacity: 2000 kg
Weight: 118 kg
Dimensions:
Length (A): 422 mm
Width (B): 380 mm
Height (C): 355 mm
Pole Height (H): 123 mm
Minimum Thickness for Use: 55 mm
Safety Factor: 3.5 times
Description: Engineered for heavy materials and large molds, providing excellent stability and lifting strength.

6. ELM-3000
Capacity: 3000 kg
Weight: 181 kg
Dimensions:
Length (A): 587 mm
Width (B): 521 mm
Height (C): 423 mm
Pole Height (H): 158 mm
Minimum Thickness for Use: 60 mm
Safety Factor: 3.0 times
