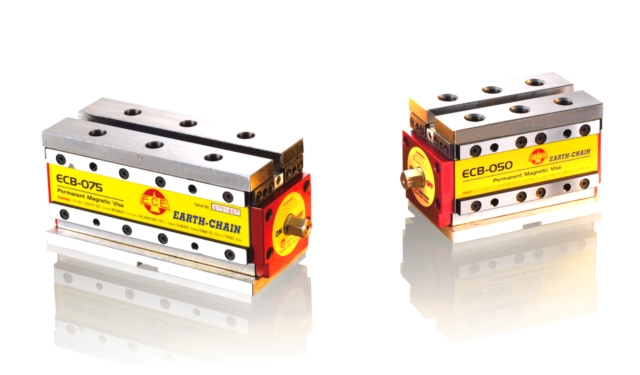

Permanent Magnetic Clamping Block

1. Suitable for medium & large work piece. (Can do 5 sides machining)
2. The all new model Magnetic Clamping Block ECB Series are a new sense of clamping way for metal working on CNC Machining Center and Milling Machine in quick clamp work pieces.
3. Free to set up position, numbers and distance of Magnetic Clamping Block according to the size of work piece.
4. Two machining circle for finish work piece machining, increase a lot of machining efficiency and achieve accuracy required.

Specification
ECB-050

Clamping Force: 500 kgf ±5%
Minimum Workpiece Thickness: 15 mm
Total Height: 90 mm (including magnetic jaws)
Weight: 7 kg
Description: A compact design ideal for small workpieces, providing stable clamping force suitable for light machining tasks.
ECB-075

Clamping Force: 750 kgf ±5%
Minimum Workpiece Thickness: 15 mm
Total Height: 90 mm (including magnetic jaws)
Weight: 9.5 kg
Description: Suitable for slightly larger workpieces, offering higher clamping force to ensure stability in precision machining.
ECB-120

Clamping Force: 1200 kgf ±5%
Minimum Workpiece Thickness: 20 mm
Total Height: 123 mm (including magnetic jaws)
Weight: 18 kg
Description: Designed for medium-sized workpieces, delivering stable performance, making it ideal for moderate machining applications.
ECB-210

Clamping Force: 2100 kgf ±5%
Minimum Workpiece Thickness: 30 mm
Total Height: 155 mm (including magnetic jaws)
Weight: 36 kg
