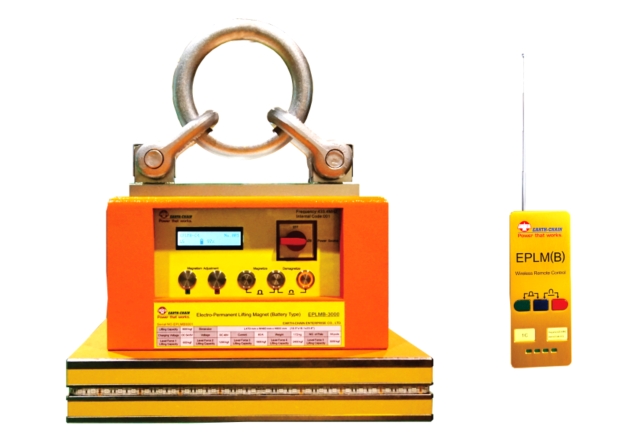

Electro-Permanent Lifting Magnet (Battery Type)

1.Battery type Permanent magnet electronic control structure design, with Neodymium (NdFeB).
No electric power supply required to keep magnetic chuck ON and provides maximized safety in case of power failure.
2.Low-voltage safety warning system, can detect the lithium battery power through the screen at any time.
3.With explosion proof Lithium battery, the charger can be setting 110V~220V.
EPLMB-3000B can be used for operating 160 cycles after the battery is fully charged.
EPLMB-4000D can be used for operating 100 cycles after the battery is fully charged.
4.The magnetism is divided into 5 levels, it can be adjusted the best magnetic force level for different workpieces.
5.Modular design can be freely expanded the output port, and the number of EPLMB Lifters are according to the application.
6.The numbers of EPLMB can be operated by wireless remote control the maximum can be 10 pcs EPLMB Lifter. Under unobstructed environment, the wireless remote control distance can be 20 meters.
7.Customization：Replaceable induction block will be alternative option according to different workpiece sizes or shapes to meet the various applications requirements.
8.Proximity sensor device: When the hoisting and lifting is started the wireless remote control device can't carry out any operation to prevent potential risk of workpiece dropping caused by mistouch the button.

Specification
The EPLMB is a robust and versatile electro-permanent lifting magnet powered by a rechargeable battery, designed for handling steel plates, molds, cylindrical iron, or irregular castings. It ensures efficient and safe operation in demanding industrial applications.

Specifications:

Model: EPLMB-4000D
Lifting Capacity: Up to 4000 kgf (8800 lbf)
Level Force 1: 800 kgf (1760 lbf)
Level Force 2: 1600 kgf (3520 lbf)
Level Force 3: 2400 kgf (5280 lbf)
Level Force 4: 3200 kgf (7040 lbf)
Level Force 5: 4000 kgf (8800 lbf)
Safety Factor: 3.3 times rated capacity
Dimensions: L530 mm × W500 mm × H647 mm (20.9" × 19.7" × 25.4")
Charging Voltage: DC 71V
Operating Voltage: DC 63V
Current: 20A
Weight: 270 kg
Number of Poles: 10
Features:

High Efficiency: Capable of operating up to 100 cycles on a fully charged battery.
Versatile Applications: Suitable for handling steel plates, molds, cylindrical iron, and irregular castings. Special accessories are available for specific requirements.
Durable and Safe: Built with high-quality materials and a safety factor of 3.3 times, ensuring reliable and secure operation.
The EPLMB-4000D offers outstanding lifting performance, energy efficiency, and versatility, making it an ideal solution for industrial material handling tasks.
