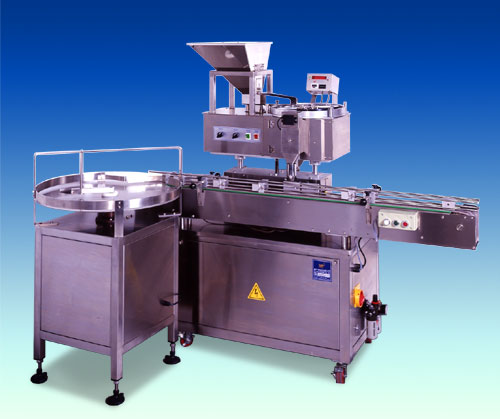

Automatic Counting Machine
- Model:
- JB-12A
Detail Specifications / Descriptions
Applications:
Designed for counting and filling tablets, capsules, and pills
Features:
Can work with an automatic cap sealing machine and a labeling machine
Photo-sensor detects bottle absence or blocking of bottles and stops the machine
The entire frame is made of stainless steel, meeting GMP standards
Capacity: up to 800 - 1300 tablets/min. (6mm Ø -16mm Ø ) , 1300 capsules/min. for all size.
Specifications:
Bottles: 30mm diameter min.; 90mm diameter max.
Power supply: AC 110V/220V; single phase; 50-60Hz
Air supply: 5kg/sq. cm; 100 liter/hr
Machine dimensions: 180cm (L) x 58cm (W) x 165cm (H)
Machine weight: 170kg
