Automatic Counting Machine

Automatic Counting Machine

Model:
JB-22A

Detail Specifications / Descriptions

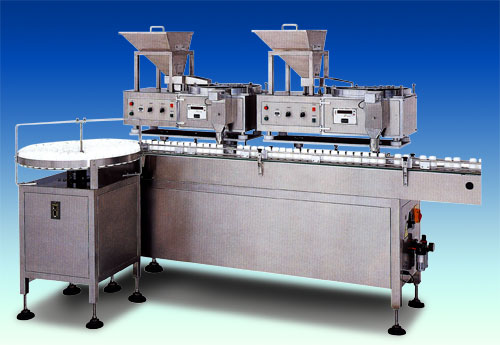

Automatic Counting Machine
(JB-22A)
Key Specifications/Special Features:

1. This system includes two counting heads.
2. Stainless steel construction meets GMP requirements.
3. The machine stops automatically if bottles back up.
4. Air pressure: 5kg/cm²
5. Compressed air consumption: 200L/hr.
Machine specifications:
Machine weight : 360kgs
Packing weight : 500kgs
Machine dimensions :
300cm (L) x 58cm (W) x 165cm (H)
PRODUCTION CAPACITY:
Product Size Count/bottle Bottleneck opening (in diameter)
( mm ) Speed bottle (bottle per min)
(mm)
Capsule 21x7.5 Ø 50 28 40
Capsule 18x6 Ø 80 28 40
Tablet ø 7.4x4.7 100 28 40
Tablet ø 12.6 x 4 50 28 50
Tablet ø 10.6x4.2 50 28 52
Tablet ø 19.0 x 5.2 20 28 32
