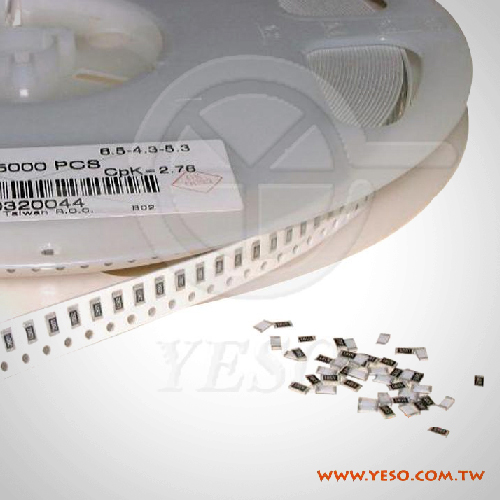

RC Thick Film Chip Resistors
- Model:
- CHIP SeriesRC Series
Detail Specifications / Descriptions
Chip resistors are made by depositing high-quality metal thick-film conductor on high-purity aluminum oxide ceramic substrate and then applying a layer of glass protective coating to produce uniform quality and stability.
Features:
Miniature size suitable for compact P. C. boards of high-precision electronic products.
8mm taped packaging suitable for automatic surface mount.
Excellent stability and reliability.
Low assembly costs.
‧Package Type: Tape & Reel,Tape in Box,Bulk
‧Effects of Soldering: 1%
‧Type: Fixed Resistor
‧Electrode Solder Ability: above 95%
‧Load Life: 3%
‧Intermittent Overload: 3%
‧Short Time Overload: 1%
‧Temperature Coefficient: 100,200PPM
‧Resistance: 1~10M ohm
‧Resistance Tolerance: 1%
‧Rated Power: 0.0625W~1W
‧Technology: Thick Film
‧Place of Origin: Taiwan
‧Brand Name: YESO
‧Model Number: RC
