High Frequency Small-Scale Canvas Special Machine
Detail Specifications / Descriptions
"DT" Type Foot Pedal / Pneumatic in Twin Operated
Range: 4-5 KW
【Specifications】

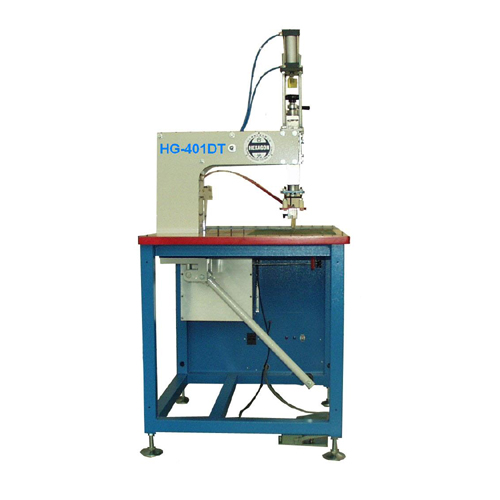

MODEL - HG-401DT / HG-501DT
Max. HF Output Power - 4 KW / 5 KW
Oscillation Frequency - 27.12 MHz
Power Source – AC 220V/380V/415V/440V 1Φ/ 3Φ50Hz / 60Hz
In-Put Power - 6.5 KVA / 8.5 KVA
Osillation Tube - E3062 / 7T85RB
Rectifier - Silicon Rectifier
Arc Suppressor - Relay
Upper & Lower Electrode - 150 mm
Press Stroke - 50 mm
Lower Electrode - 350 X 700 mm
Throat Deep - 40CM
Operation - Foot Padel / Pneumatic In Twin Operated
