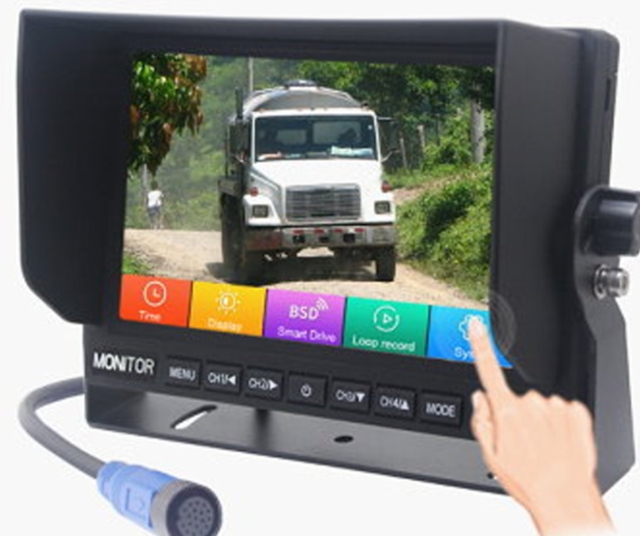

BSD Monitor
- Model:
- BA-709HQ BSD
- Country of Origin:
- China, Taiwan
- Material:
- 7 inch HD IPS Panel
- Color:
- BLACK
Detail Specifications / Descriptions
Screen Size: 7 inch HD IPS Panel
Aspect ratio: 16:9
Luminance: 500cd/M2
Resolution: 1024*RGB*600
System: PAL system
Operation:
Full screen touch/ touch button
Video Input:
4 Ways 720P@25fps/30fps or
4 Ways 1080P@25fps/30fps
Display modes:
1 channel full screen display;
4 channels split view;
Display image switch:
double-tap touch screen, button switch;
DVR function:
Support 4 channels recording,
Single channel playback;
File size: About 7.24M/min;
Max. support 256GB high-speed card;
BSD function:
Support max. 3 channels, left, right(standard)
and back(when triggered)
Multi-language
Voltage: DC12V-24V (DC9-36V)
Power consumption: ＜11.4w(normal
working)
Current consumption: 900mA@12V(4
channels)
Connector: Aviation 4pin-Male
Anti-shock: 4G
Bracket: Fan shape bracket BR-011
Sunshade removable, Remote Control
Working Temperature: -20-70 ℃
Storage Temperature: -30-80℃
