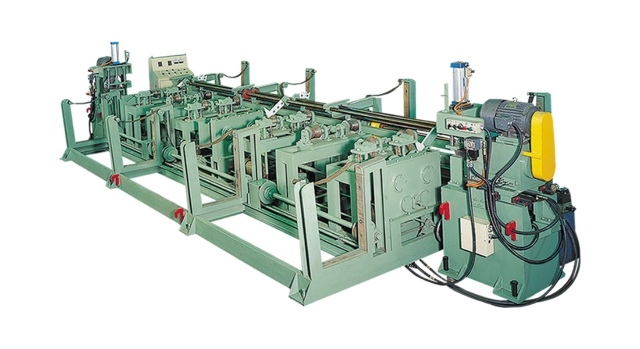

End Facing and Cutting Machine

Automatic end facing & cutting machine. Its main purpose is to save the labor, remove the filings, chamfer the outside and inside angle, beautify the outlook, hurtless hand move the tube and easy welding.


Model
Dimension
Machine Speed
Vector Motor


JWE-2H
Ø21.34 mm - ø60.33 mm
1.5 mm - 4.0 mm
AC 5 HP


JWE-4H
Ø60.33 mm - ø114.3 mm
1.5 mm - 6.0 mm
AC 5 HP


JWE-8H
Ø76.2 mm - ø219.08 mm
2.1 mm - 8.2 mm
AC 7.5 HP


JWE-12H
Ø168 mm - ø323 mm
2.5 mm- 10 mm
AC 10 HP
