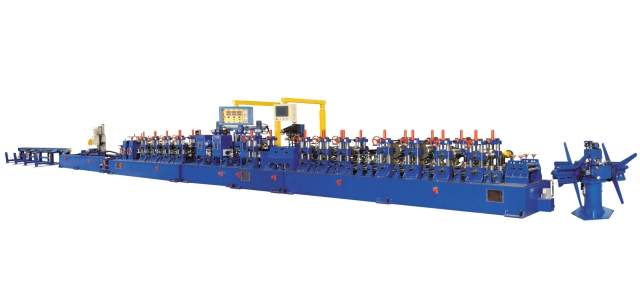

Stainless Steel Tube Forming Machine

It is specially designed for forming and welding of stainless steel tube under mass-production. Its main purpose is to increase the output, to upgrade the quality and to reduce the consumption.It is easy to operate, labor-saving, high safe to meet the requirement of high efficiency, low cost and high margin.





Main parts of the machine:
※ Optional accessories



Uncoiler
3-stage roller forming machine: a.Forming b.Welding c.Sizing
Outside bead remover
Auto cut-off unit
Run out table



Quick change system
Inside bead remover
Tri-cathode welder
On line annealing











Model
Dimension
Wall Thickness
Machine Speed
Vector Motor


JW-B-45S
Ø12.7mm - ø38.1mm
0.5mm - 2.0mm
1.0 - 13.2 M/min
AC 15HP x 2


JW-B-45
Ø13.8mm - ø33.4mm
1.2mm - 3.4mm
1.0 - 4.0 M/min
AC 15HP x 2


JW-B-60S
Ø25.4mm - ø76.2mm
0.7mm - 3.0mm
0.5 - 10.0 M/min
AC 15HP x 2


JW-B-60
Ø26.67mm - ø76.2mm
1.6mm - 5.0mm
0.5 - 3.2 M/min
AC 20HP x 2


JW-B--80S
Ø63.5mm - ø127mm
1.2mm - 4.0mm
0.4 - 8.5 M/min
AC 20HP x 2


JW-B-80
Ø48.68mm - ø114.3mm
1.6mm - 6.0mm
0.4 - 2.7 M/min
AC 30HP x 2


JW-B-100
Ø114.32mm - ø219.08mm
2.0mm - 8.2mm
0.3 - 2.5 M/min
AC 40HP x 2


JW-B-120
Ø168.28mm - ø323.85mm
2.7mm - 9.5mm
0.3 - 2.5 M/min
AC 50HP x 2


JW-B-180
Ø426mm - ø631mm
6.0mm - 16.0mm
0.2 - 2.0 M/min
AC 75HP x 2
